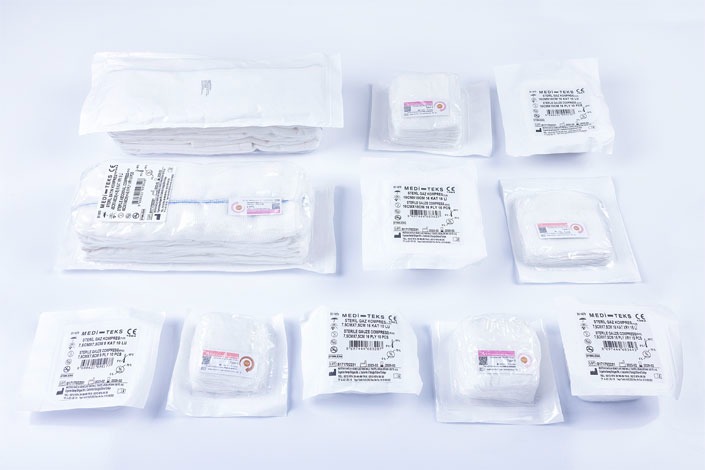

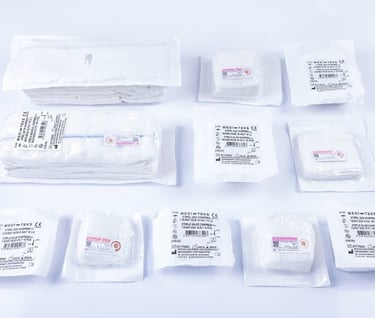

Absorbent Pad / Gauze Packing Machine (Soft Blister Packing)

Technical Specification – Soft Blister Packing Machine

Make: PEEPL Automation
Model: BPM S400

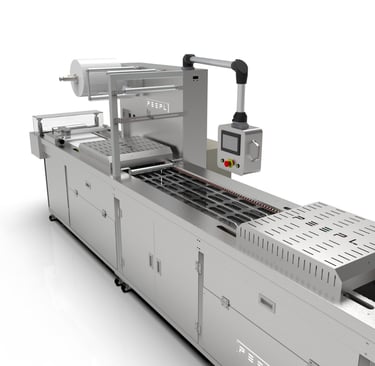

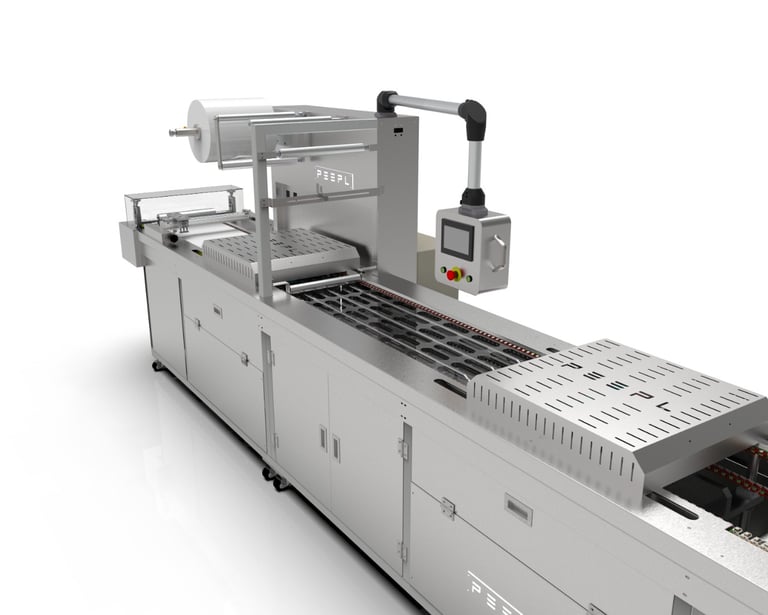

The BPM S400 is a high-performance soft blister packing machine, designed and engineered by PEEPL Automation for the sterile and efficient packaging of various medical devices. With precision-controlled thermoforming and sealing systems, it ensures consistent pack quality, hygienic operation, and compliance with medical packaging standards. This fully automatic system is ideal for medium to high-volume production lines.

Key Features

Parameter : Specification

Forming Technology : Vacuum Thermoforming

Sealing Technology : Thermo Sealing with Temperature Control

Maximum Reel Width : 410 mm

Maximum Forming Area : 400 mm x 600 mm

Operating Speed : Up to 12 Cycles per Minute

Product Feeding : Manual (with optional automation upgrade)

Material Contact Parts : SS 304 / Hard-Anodized Aluminum

Power Consumption : 12 kW (3 Phase, 50 Hz)

Compressed Air Requirement : 6 Bar (Dry & Filtered Air)

Control System : PLC Controlled with HMI Interface

Temperature Control : PID Based Precision Heating Zones

Film Compatibility : PET, PVC, Paper-Foil, Tyvek®

Cavity Design : Customizable per product requirement

Safety Features : Emergency Stop, Overload Protection, Safety Enclosures

Machine Dimensions : Approx. 5600 mm (L) x 1200 mm (W) x 1800 mm (H)

Weight Approx. : 1300 kg
