Swab Packing Machine

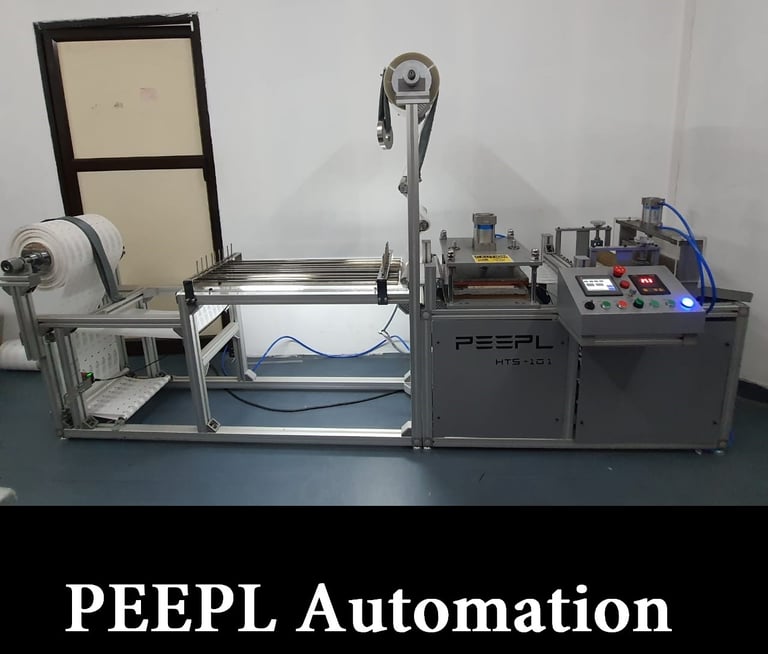

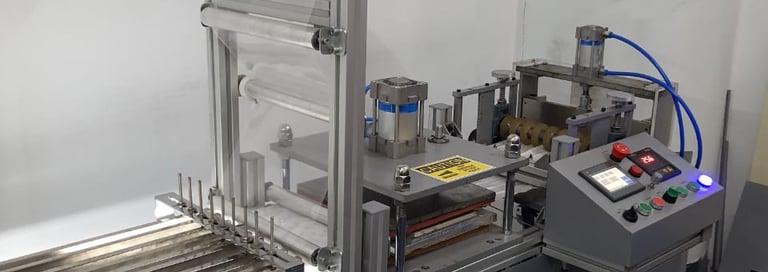

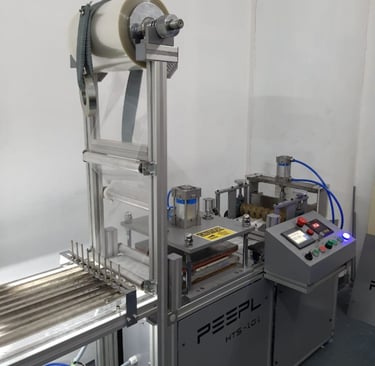

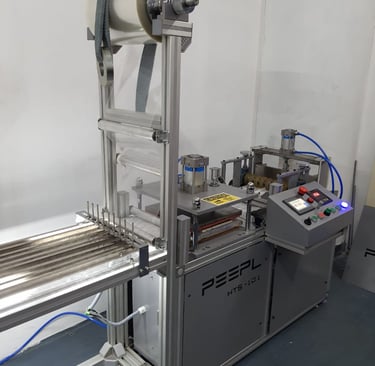

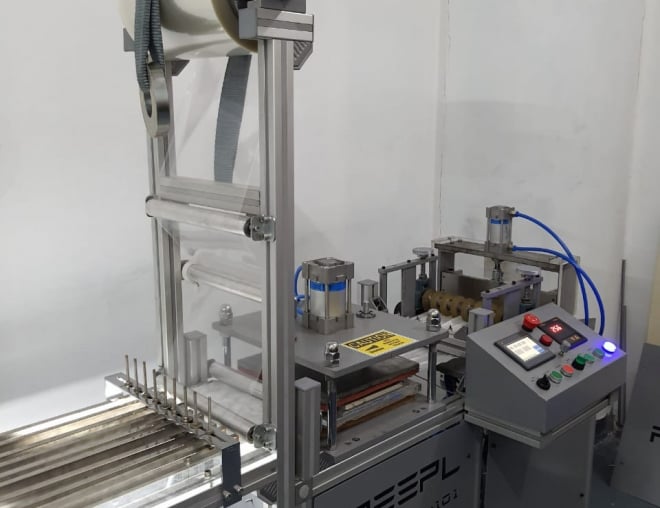

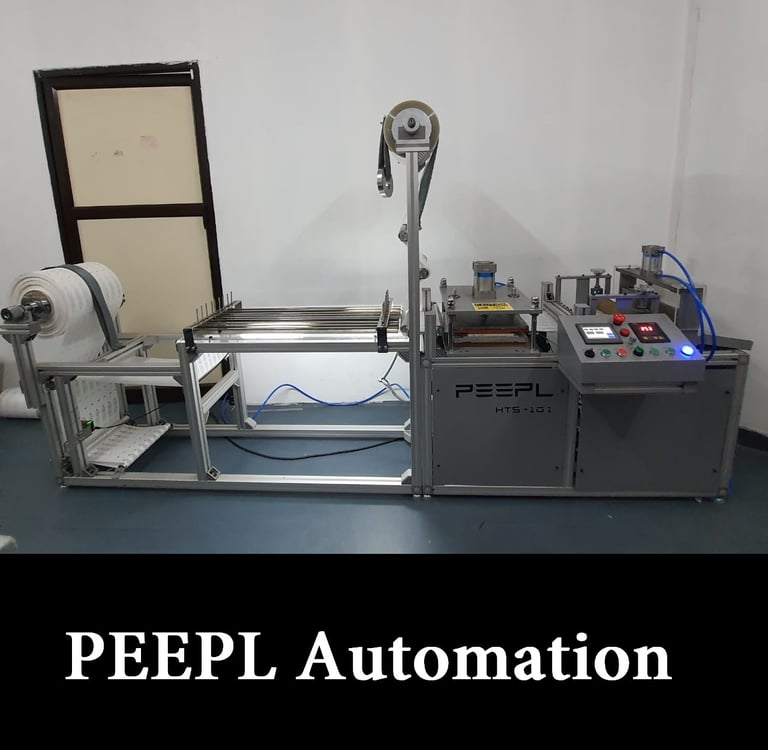

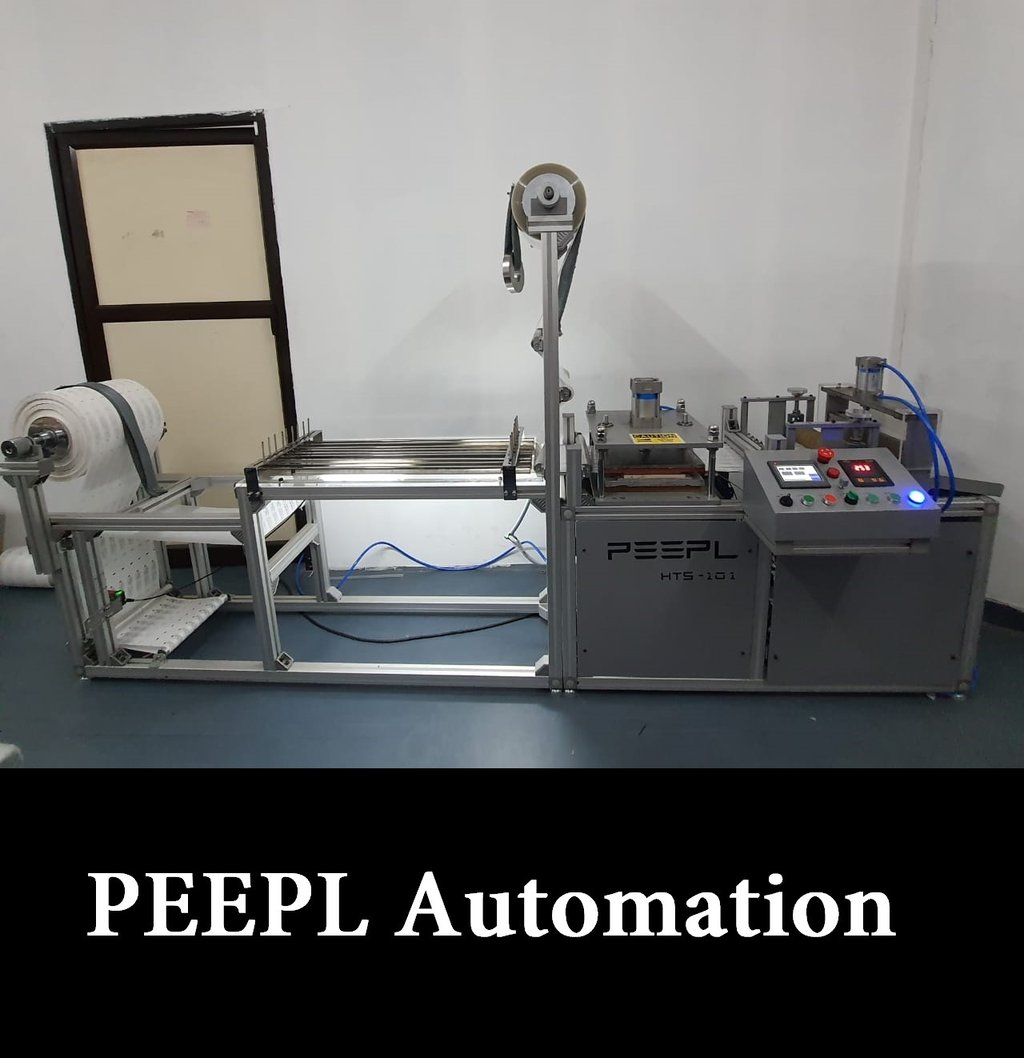

Nasal / Throat Swab Packing Machine

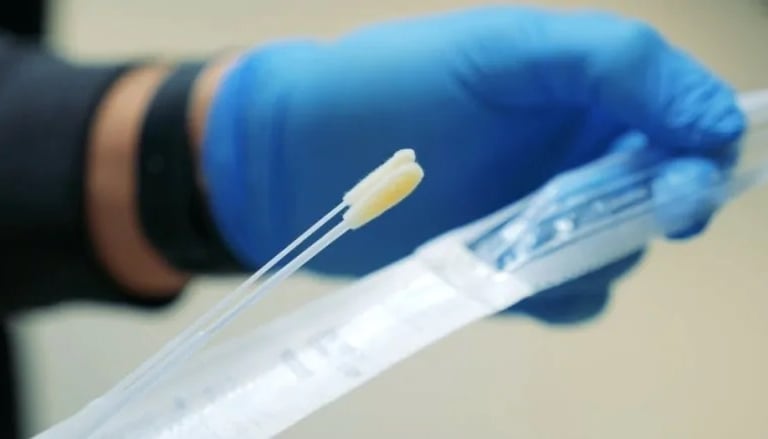

The Nasal/Throat Swab Packing Machine is a high-speed, precision-engineered solution for the hygienic and efficient packaging of swabs. It supports multiple sealing materials and ensures accurate sealing, cutting, and pouch formation with advanced PLC control. The machine is built with a durable aluminum body and stainless steel contact parts, ensuring long-term reliability and compliance with hygiene standards.

Technical Specifications:

• Reel Width: 300mm

• Maximum Sealing Area: 300mm x 300mm

• Speed: Up to 20 cycles per minute

• Material for Sealing: Paper/Paper, Poly/Poly, Paper/Poly, Tyvek paper, and sealable material

• Machine Output: Capable of running up to 140 packs per minute (7 lane)

• Machine Dimension: 3500mm (L) x 950mm (W) x 2100mm (H)

• Eye Mark Compensation: Up to the accuracy of +/-0.5mm to +/-2.0mm depending on stretchability of the material

• Eye Mark Dimension: 12mm (L) x 5mm (W)

• Outer Pouch Dimension Range: 170mm to 285mm (Length) x 140mm to 160mm (Width)

• Paper Roll Diameter: Up to 450mm

• Paper Roll Width: 280mm to 300mm

• Paper Roll Core Diameter: 76mm

• Maximum Weight Supported: 60kg

Key Features:

• Teflon-Coated Dies for enhanced durability and non-stick performance.

• Aluminum Body for a lightweight yet robust structure.

• All Contact Parts Made of SS 304 to ensure hygiene and corrosion resistance.

• PLC Control System for precise operation and automation.
