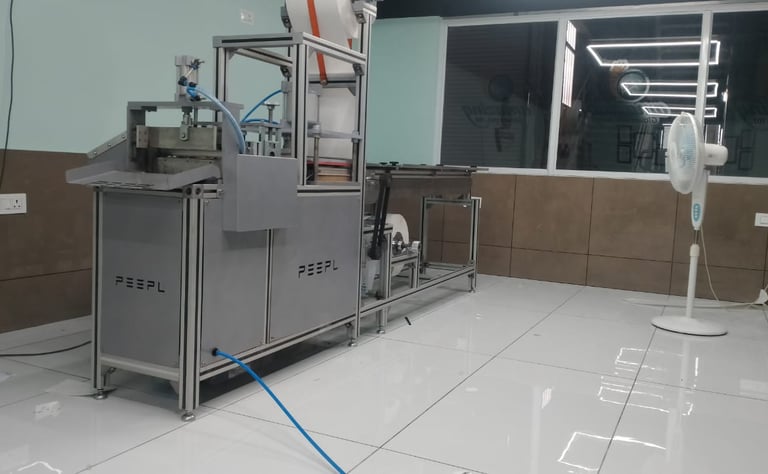

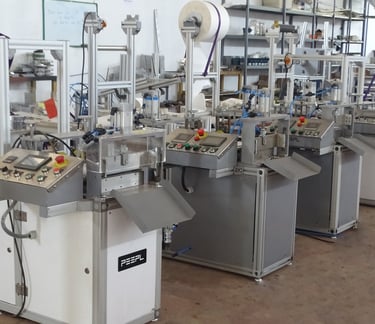

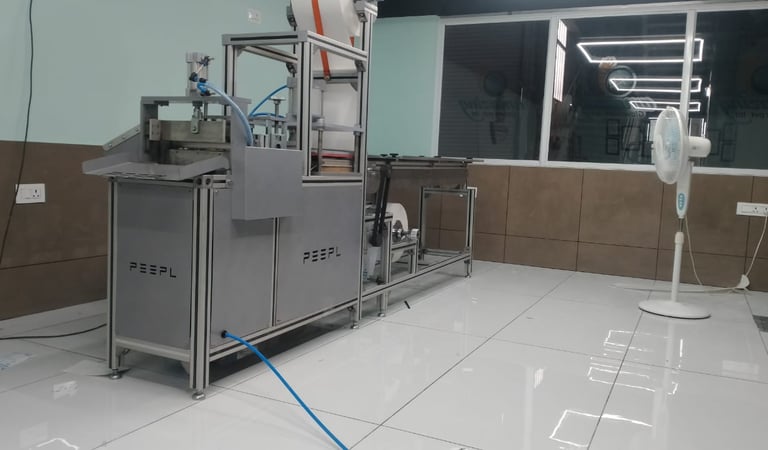

Outer Pouch Platen Seal Machine
The Outer Pouch Platen Seal Machine ensures high-quality sealing and consistent integrity across various flexible packaging materials, including film, paper, Tyvek, and aluminum.
Utilizing the platen seal method, it provides excellent stability during the sealing process before sterilization. This machine is ideal for packaging medical products and diagnostic devices such as surgical gloves, sutures, plasters, gauzes, and more.
Model: HTS 101 (Basic Horizontal Thermo Sealing Machine)
Application:
Designed for surgical glove packaging and similar flat object packaging.
Suitable for sterile pouch manufacturing
Technical Specifications:
REEL WIDTH: 300mm
MAXIMUM SEALING AREA: 300mm x 300mm
SPEED: Up to 30 cycles per minute
MATERIAL FOR SEALING :Paper/Paper, Poly/Poly, Paper/Poly, Tyvek paper and sealable material
MACHINE OUTPUT : Capable of running up to 60 packs per minute (double lane)
MACHINE DIMENSION : 3500mm (L) x 950mm (W) x 2100mm (H)
EYE MARK COMPENSATION : Up to the accuracy of +/-0.5mm to +/-2.0mm depending on stretch-ability of the material
EYE MARK DIMENSION : 12mm (L) x 5mm (W)
OUTER POUCH DIMENSION RANGE : 170mm to 285mm (Length) x 140mm x 160mm (Width)
PAPER ROLL DIAMETER : Up to 450mm
PAPER ROLL WIDTH : 280mm to 300mm
PAPER ROLL CORE DIAMETER : 76mm
MAXIMUM WEIGHT SUPPORTED : 60kg
Key Features:
Teflon-Coated Dies for enhanced durability and non-stick performance.
Aluminum Body for a lightweight yet robust structure.
All Contact Parts Made of SS 304 to ensure hygiene and corrosion resistance.
PLC Control System for precise operation and automation.
For further details, customizations, or inquiries, please contact us.

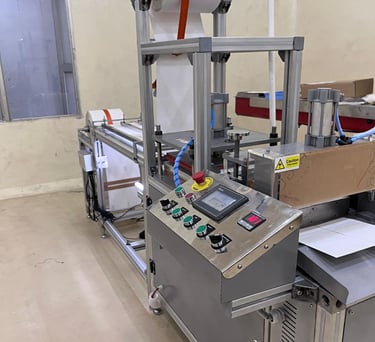

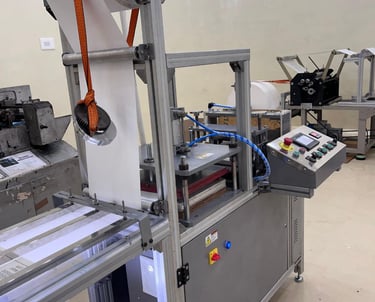

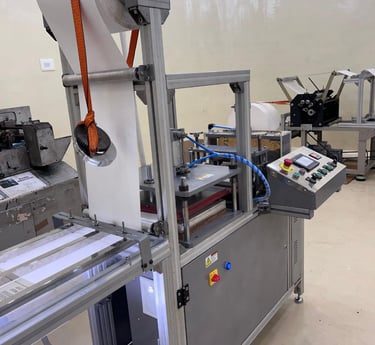

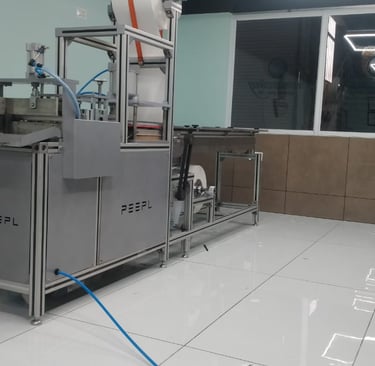

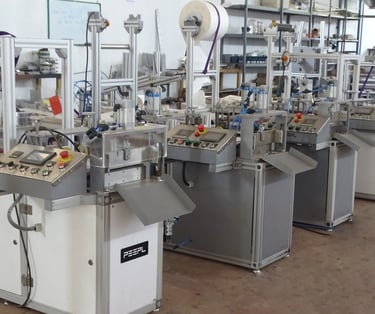

Outer Pouch Platen Seal Machine
The Outer Pouch Platen Seal Machine ensures high-quality sealing and consistent integrity across various flexible packaging materials, including film, paper, Tyvek, and aluminum.
Utilizing the platen seal method, it provides excellent stability during the sealing process before sterilization. This machine is ideal for packaging medical products and diagnostic devices such as surgical gloves, sutures, plasters, gauzes, and more.
Model: HTS 101 FC (With feeding conveyor)
Application:
Designed for surgical glove packaging and similar flat object packaging.
Suitable for sterile pouch manufacturing
Technical Specifications:
REEL WIDTH: 300mm
MAXIMUM SEALING AREA: 300mm x 300mm
SPEED: Up to 30 cycles per minute
MATERIAL FOR SEALING :Paper/Paper, Poly/Poly, Paper/Poly, Tyvek paper and sealable material
MACHINE OUTPUT : Capable of running up to 60 packs per minute (double lane)
MACHINE DIMENSION : 3500mm (L) x 950mm (W) x 2100mm (H)
EYE MARK COMPENSATION : Up to the accuracy of +/-0.5mm to +/-2.0mm depending on stretch-ability of the material
EYE MARK DIMENSION : 12mm (L) x 5mm (W)
OUTER POUCH DIMENSION RANGE : 170mm to 285mm (Length) x 140mm x 160mm (Width)
PAPER ROLL DIAMETER : Up to 450mm
PAPER ROLL WIDTH : 280mm to 300mm
PAPER ROLL CORE DIAMETER : 76mm
MAXIMUM WEIGHT SUPPORTED : 60kg
Key Features:
Teflon-Coated Dies for enhanced durability and non-stick performance.
Aluminum Body for a lightweight yet robust structure.
All Contact Parts Made of SS 304 to ensure hygiene and corrosion resistance.
PLC Control System for precise operation and automation.
For further details, customizations, or inquiries, please contact us.
