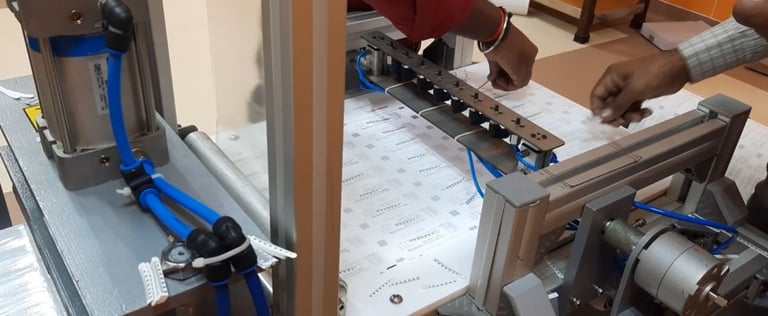

Ophthalmic Strip Packing Machine

Ophthalmic Strip Packing Machine

Model: OSPM (Ophthalmic Strip Packing Machine)

Application:

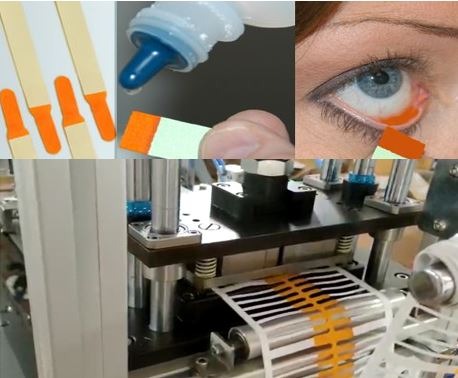

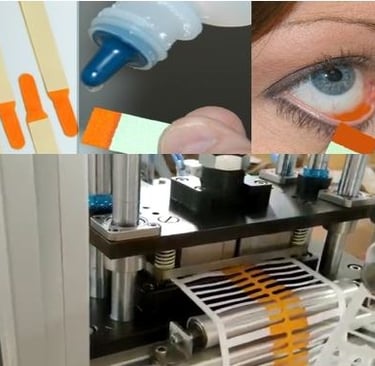

  • Designed for packing fluorescein strips and tear test strips.

  • Ensures precise and high-speed packing operations.

Technical Specifications:

  • Speed: Up to 160 strips per minute

  • Strip Feeding: Automatic

  • Reel Width: 300mm

  • Sealing Material: Paper/Paper, Poly/Poly, Paper/Poly, Tyvek Paper, and other sealable materials

  • Machine Dimensions: 3500mm (L) x 950mm (W) x 2100mm (H)

  • Eye Mark Compensation: Accuracy of +/-0.5mm to +/-2.0mm (depending on material stretchability)

  • Eye Mark Dimension: 12mm (L) x 5mm (W)

  • Outer Pouch Dimension Range: 170mm to 285mm (L) x 140mm to 160mm (W)

  • Paper Roll Diameter: Up to 450mm

  • Paper Roll Width: 280mm to 300mm

  • Paper Roll Core Diameter: 76mm

  • Maximum Supported Weight: 60kg

Key Features:

  • Teflon-Coated Dies for enhanced durability and non-stick performance.

  • Aluminum Body for a lightweight yet robust structure.

  • All Contact Parts Made of SS 304 to ensure hygiene and corrosion resistance.

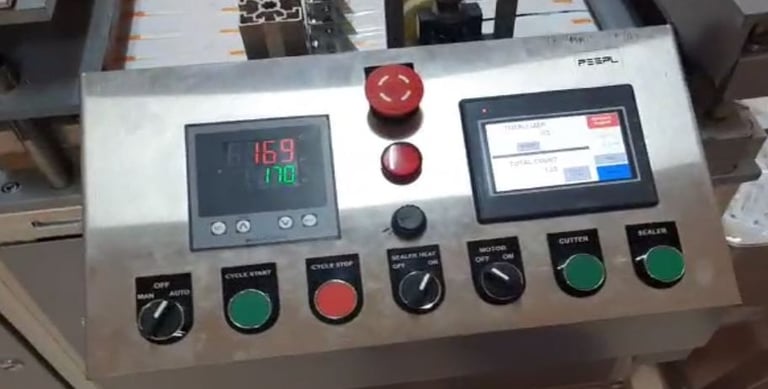

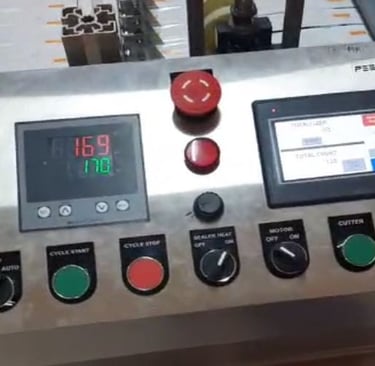

  • PLC Control System for precise operation and automation.

For further details, customizations, or inquiries, please contact us.
